TubeFlow PIC for Wireline

Hydraulics

Models production and injection operations with effects of choke pressure loss

Torque and Drag

Evaluates forces and stresses on the wireline during well intervention

Pump Down Analysis

Determines the minimum required pump down rate to reach a target depth


Overview

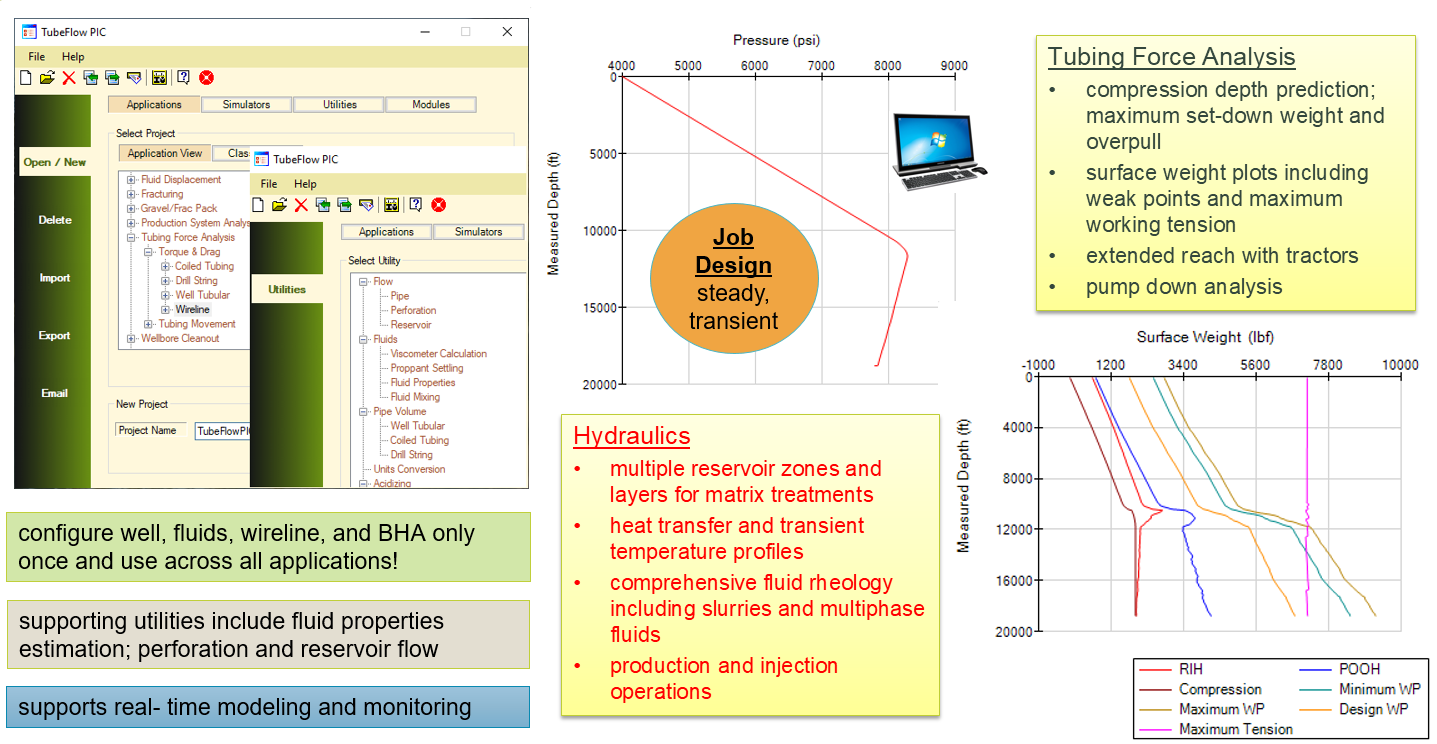

Overview: The software suite for wireline in TubeFlow PIC is used to design applications in Hydraulics, Torque and Drag, and perform Pump Down Analysis.

Wireline Software Suite

The software suite for wireline in TubeFlow PIC is used to design various wireline operations. Applications that are included in the wireline software suite are listed below:


Hydraulics

  • models production and injection operations with effects of choke pressure loss
  • supports a wide variety of fluids commonly used in wireline operations – single and multiphase fluids
  • includes effects of heat transfer to/from the formation to determine temperature profiles
  • multiple reservoir zones and layers supported for both production and matrix treatments

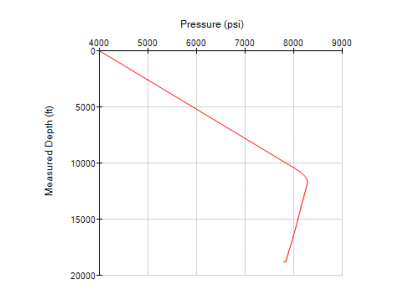

Wireline-Hydraulics: Models production and injection operations with effects of choke pressure loss

Torque and Drag

  • evaluates forces and stresses on the wireline during well intervention
  • determines wireline compression depth and estimates maximum set-down weight and overpull while run-in-hole (RIH) and pull-out-of-hole (POOH)
  • computes surface weights during RIH, POOH, compression limit, weak points, and maximum working tension
  • models extended reach with rollers, tractors, and pump down analysis

Wireline-Torque and Drag:, Evaluates forces and stresses on the wireline during well intervention

Pump Down Analysis

  • determines the minimum required pump down rate to reach a target depth
  • computes the pump down rates at the minimum and maximum weak point limit as well as at the maximum working tension limit
  • recommends a design pump down schedule such that the weak point and maximum working tension limits of the wireline are not exceeded
  • determines the maximum allowable pump pressure during pump down operations

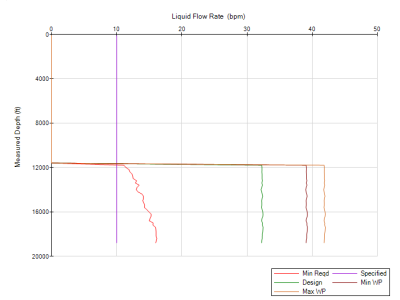

Wireline-Pump Down Analysis:, Determines the minimum required pump down rate to reach a target depth

Benefits

  • performs a comprehensive engineering analysis to accurately assess pre-job design
  • reduces job design time and cost
  • ensures pressure limits during a job are within safety standards
  • optimizes a pump schedule for a wireline job


Information

A full featured evaluation version is available for 15 days. Please contact us for more information.
